MINI-PS-100-240AC/2X15DC/1
13
Signaling
The DC OK-LED is available for function monitoring.
State 1
State 2
"DC OK" LED
Meaning
14
Function
ON
Normal operation of the power supply unit
(U OUT ? > ? 13.5 ? V)
OFF
1. The output voltage is less that 13.5 V.
There is a secondary consumer short circuit
or overload.
2. There is no mains voltage or there is a
device fault.

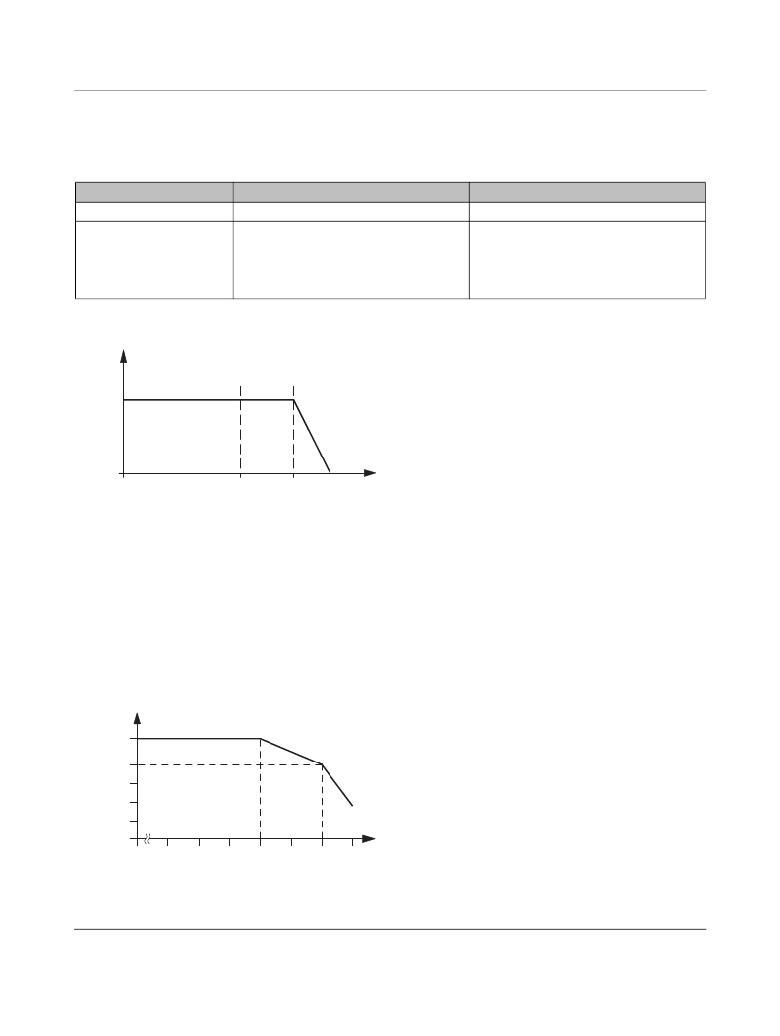

Output characteristic curve
The device makes a nominal output current of 1 A available
up to an ambient temperature of 60 °C. At an ambient
U N
temperature of up to 40 °C, the device supplies a continuous
output current of 1.5 A. In the event of a stronger load, the
working point passes the U/I characteristic curve shown in the
figure.
In the event of overload or short circuit, the full I BOOST output
current is permanently made available with decreased output
I B OOST
I N
I N
I B OOST
I OUT [A]
voltage and the device does not switch off. As soon as the
overload or short-circuit is eliminated, the full secondary
voltage is made available again.
The U/I characteristic curve ensures that both heavily
capacitive loads and devices with DC/DC converters in the
primary circuit can be supplied by the MINI POWER without
problems.
U N = 15 V
I N = 1 A
I Boost = 1.5 A
Thermal behavior
The device makes a nominal output current of 1 A available
up to an ambient temperature of 60 °C. In the case of ambient
temperatures of up to 40 °C, the device supplies a continuous
output current of 1.5 A. The POWER BOOST is available for
some minutes. For ambient temperatures above 60°C, the
output current must be reduced by 5 % per Kelvin increase in
temperature. From 70°C onwards or in the case of thermal
0
-25
100299_en_04
20
40 60
Ambient temperature [°C]
overload, the device reduces the output capacity for its own
protection, and returns to normal operation when it has
cooled down.
11
PHOENIX CONTACT
